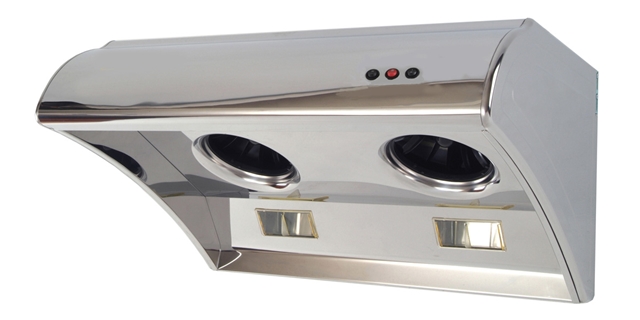

JG Series
JG Series

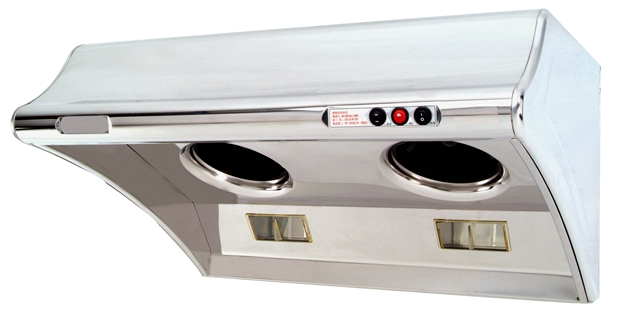

LG Series
LG Series

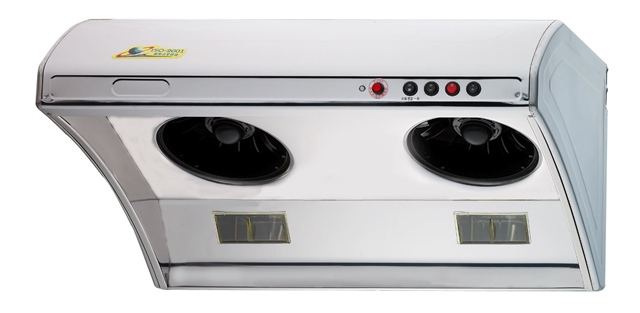

SG Series
SG Series

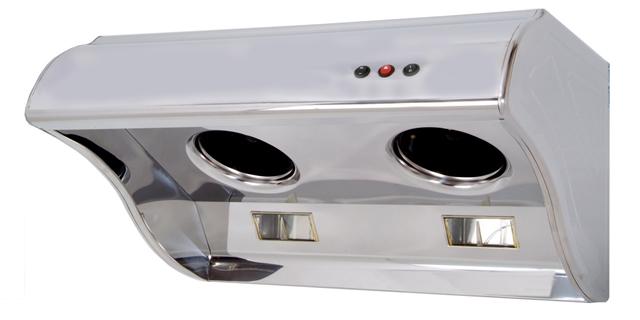

SJG Series
SJG Series

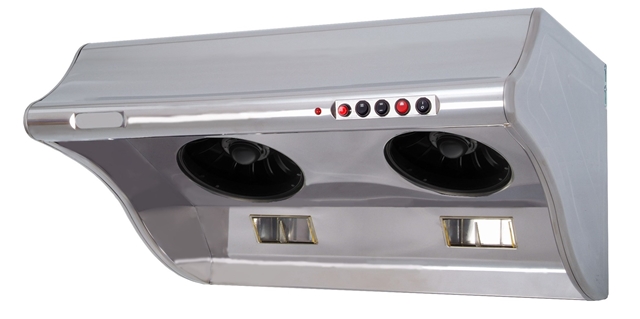

SLG Series
SLG Series

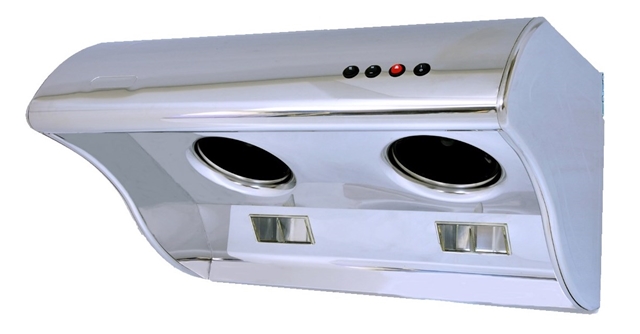

STG Series
STG Series

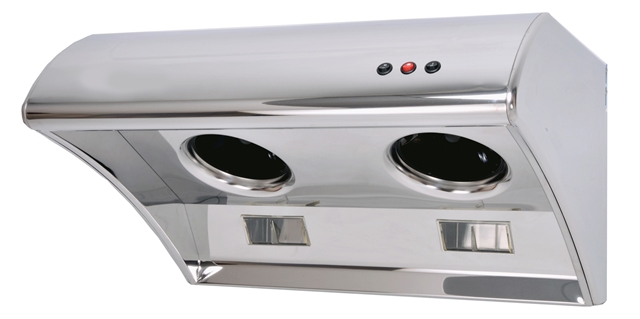

TG Series
TG Series

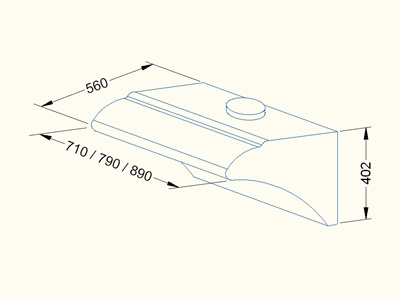

Size
Size

Slanting Hood

Model：
JG / LG / SG / TG / SJG / SLG / STG
Feature：
1.Slanting motor design, close to stove, more efficient to vent smoke.
2.Front side oil cup design, easy to replace.
3.Electric degrease inside, easy to clean oil.
Type 700 800 900
Weight 17.5kg 18.kg 18.kg
Dimension（L*W*H） 714×563×402mm 790×563×402mm 890×563×402mm
Voltage 110V~240V
Vent Diameter 200mm * 150mm
Lighting LED Light
Switch Rocker Switch
Fan Level Level 1 / Level 2 / Level 3
Air Flow 19.5（m3/min）
Motor Consumption Under 200W
