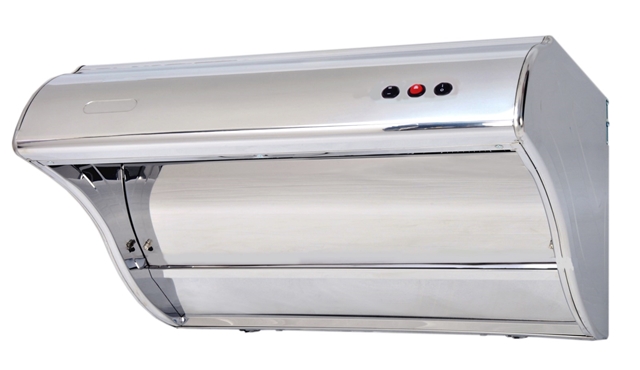

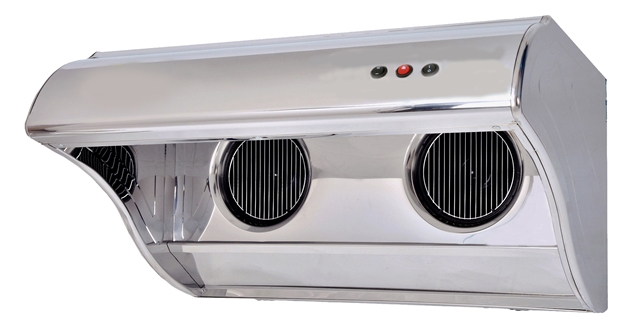

SJM Series
SJM Series
SJM Series
SJM Series

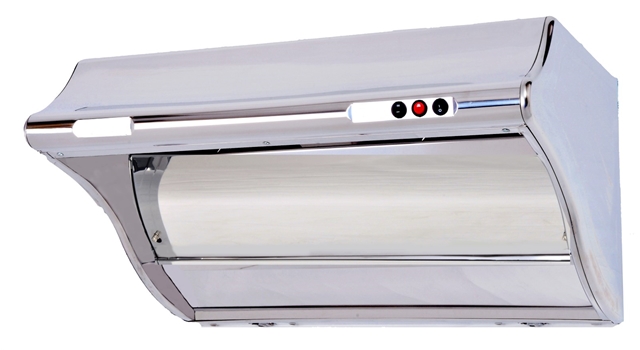

SLM Series
SLM Series

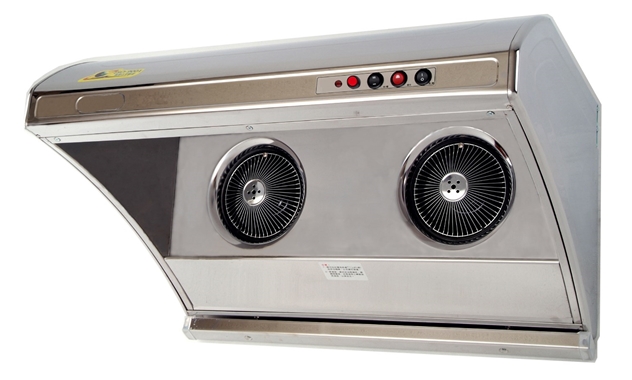

SM Series
SM Series

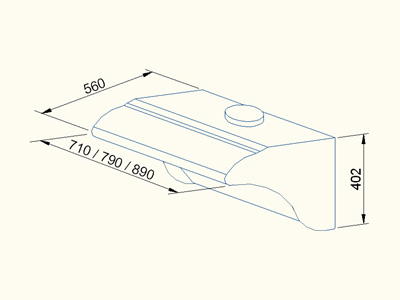

Size
Size

Straight Hood

Model：
SJM / SLM / SM
Feature：
1.Straight exhaust design, left and right turn motor, efficient exhaust effect.
2.Close to stove, collect smoke efficient.
3.Detachable design without tool, easy to clean.
4.Electric degrease inside, easy to clean oil.
Type 700 800 900
Weight 15.8kg 16.7kg 17.5kg
Dimension（L*W*H） 710*560*402mm 790*560*402mm 890*560*402mm
Voltage 110V~240V
Vent Diameter 218mm * 158mm
Lighting LED Light
Switch Rocker Switch
Fan Level Level 1 / Level 2 / Level 3
Air Flow 20.3（m3/min）
Motor Consumption Under 340W
BACK
