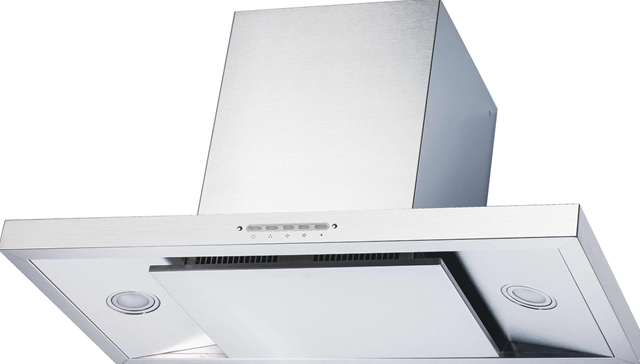

BT-700S
BT-700S

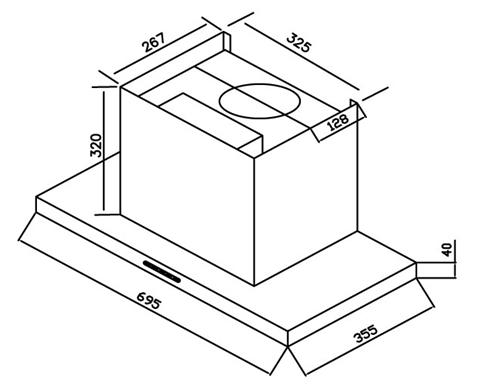

BT-700S_Size
BT-700S_Size

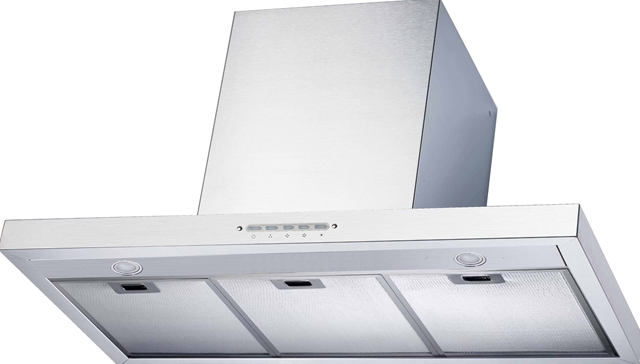

BT-900S
BT-900S

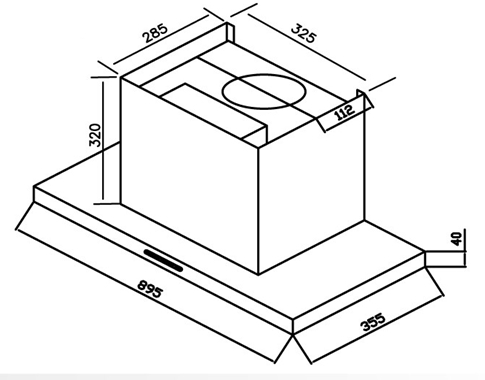

BT-900S_Size
BT-900S_Size

Chimney Hood

Model:
BT
Feature:
1.3D baffle design, easy to clean(700S).
2.Baffle filter can filter 80% smoke(900S).
3.2-Pole high power motor.
4.LED electronic switch.
5.Hidden oil cup, easy to clean.

Type

BT-700S

BT-900S

Weight

12kg

13kg

Dimension(L*W*H)

695*355*40mm

895*355*40mm

Voltage

220V/50Hz

Lighting

3W LED x 2

Fan Level

Level 1 / Level 2 / Level Turbo

Air Flow

17.5(m3/min)

Motor Consumption

 Under 200W
